Triangular Aluminum Truss Specifications

  2" Chord Aluminum Truss
1" Chord Aluminum Truss
2 Chord Ladder Truss
3 Chord Triangle Truss
4 Chord Box Truss
Curved Truss



3 Chord / Triangle Truss

3 Chord truss is the most cost effective truss when strength, size, and long spans are needed. The extra strength gained by the 3 chord truss makes for horizontal and vertical stability that is critical on longer spans of truss. Great for all situations structural or cosmetic. The 360 degree visibility of 3 chord / tri truss adds dimension and strength to any exhibit or display. This truss can be used in 4 different orientations. Apex up, apex down, apex in and apex out. All of these orientations create an exciting visual and allow for some amazing designs. We highly recommend going to 3 chord truss if the budget allows for it as it will serve you well for many years and the expansion possibilities are endless due to the added strength having less limitations as far as long spans are concerned. A great cost effective choice for your next project with room to expand on other projects in the future. Simply add more truss to create countless variations of truss structures and display components. It's a giant Meccano set !

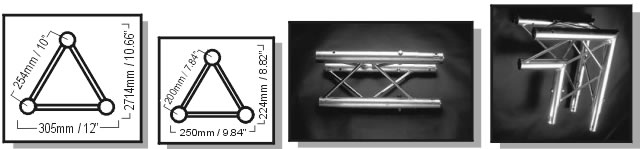

3 Chord/ Triangle Truss 10" and 12" Profile

10" and 12" Truss Load Tables

LENGTH - 10" TRUSS (Measured in Metric Lengths)
1m
2m
3m
4m
5m
6m
7m
8m
TRUSS WEIGHT Lb.
8
14
20
26
33
39
44
49
UD. LOAD Lb. Per Ft.
775
310
168
122
86
58
43
32
PNT. LOAD Lb.
1840
1600
1440
1080
865
720
575
520
LENGTH - 12" TRUSS
6'
8'
12'
16'
18'
20'
30'
40'
TRUSS WEIGHT Lb.
16.65
22.20
33.30
44.40
49.95
55.50
83.25
111
UD. LOAD Lb.
2390
2464
2095
1686
1486
1307
891
673
PNT. LOAD Lb.
827
737
628
541
498
455
343
275

PNT. Load = Point Load / UD. Load = Uniformly Distributed Load. All ratings are to be used as a general guideline only.

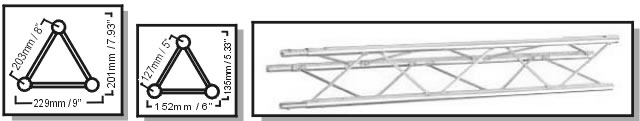

3 Chord / Triangle Truss 6" and 9" Profile
