Exhibits
and Displays : 2
Chord Ladder Truss
2
Chord / Ladder Truss
2 Chord
/ Ladder truss is great for small exhibits or displays
where the strength and stability of the 3 and 4 chord
truss is not needed. 2 chord truss can be used in a horizontal
or vertical plane to provide strength but only in one direction.
Makes for excellent media and sign mounting as well as
archways, props and divider walls.

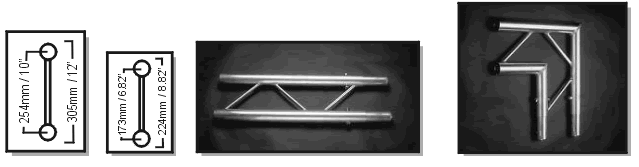

2 Chord / Ladder Truss 10" and
12" Profile
 |
10" and 12" Truss Load Tables
|
LENGTH - 10" TRUSS (Measured
in Metric Lengths)
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
7m
|
8m |
|
TRUSS WEIGHT Lb.
|
4.80
|
8.10
|
11.40
|
14.70
|
17.60
|
20.90
|
24.20
|
27.50
|
|
UD. LOAD Lb.
|
835
|
815
|
782
|
683
|
560
|
476
|
418
|
367
|
|
PNT. LOAD Lb.
|
733
|
614
|
459
|
351
|
298
|
249
|
205
|
184
|
|
LENGTH - 12" TRUSS
|
6'
|
8'
|
12'
|
16'
|
18'
|
20'
|
30'
|
40' |
|
TRUSS WEIGHT Lb.
|
10.41
|
13.88
|
20.81
|
27.75
|
31.22
|
34.69
|
52.03
|
69.38
|
|
UD. LOAD Lb.
|
814
|
807
|
754
|
682
|
635
|
581
|
419
|
315
|
|
PNT. LOAD Lb.
|
675
|
675
|
512
|
407
|
362
|
316
|
213
|
162
|
6" and
9" Truss Load Tables

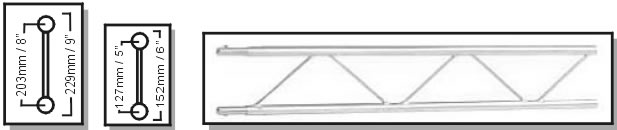

2 Chord / Ladder Truss 6" and
9" Profile
 |
|
LENGTH - 6 " TRUSS
|
6'
|
8'
|
10'
|
12'
|
14'
|
16'
|
18'
|
20' |
|
TRUSS WEIGHT Lb.
|
3.53
|
4.70
|
5.88 |
7.05
|
8.23
|
9.40
|
10.58
|
11.75
|
|
UD. LOAD Lb.
|
320
|
308
|
291
|
275
|
252
|
222
|
198
|
181
|
|
PNT. LOAD Lb.
|
255
|
220
|
194
|
170
|
133
|
128
|
110
|
99
|
|
LENGTH - 9 " TRUSS
|
6'
|
8'
|
10'
|
12'
|
14'
|
16'
|
18'
|
20' |
|
TRUSS WEIGHT Lb.
|
4.28
|
5.70
|
7.13
|
8.55
|
9.98
|
11.40
|
12.83
|
14.00
|
|
UD. LOAD Lb.
|
365
|
389
|
385
|
378
|
371
|
352
|
330
|
305
|
|
PNT. LOAD Lb.
|
350
|
332
|
275
|
235
|
204
|
180
|
165
|
150
|
PNT.
Load = Point Load / UD. Load = Uniformly Distributed Load.
All ratings are to be used as a general guideline only.
