9″ WIDE ALUMINUM TRUSS SPECIFICATIONS

9″ Wide Aluminum Truss offers a great solution to building display booths. It is not one of our more popular profile sizes, but some jobs require it. It is the next size up from our 6″ wide aluminum mini truss. The slightly larger size of 9″ produces a different appearance which may be perfect for your truss display booth. 9″ aluminum truss uses the same tube/chord size and connection inserts as the 6″ wide aluminum mini truss. Exhibit and Display Truss offers a wide variety of truss parts and accessories. Exhibit and Display Truss stocks standard parts and exhibit booths and also has the ability to build custom parts and booths if your project requires unique configurations. If you cant find what you are looking for, do not hesitate to ask for a custom length or size. 1″ tube connection inserts (and hardware) come standard with each truss part, allowing for a quick and easy assembly.

Specifications:

• Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
• Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
• Material: 6005 – T6 Aluminum

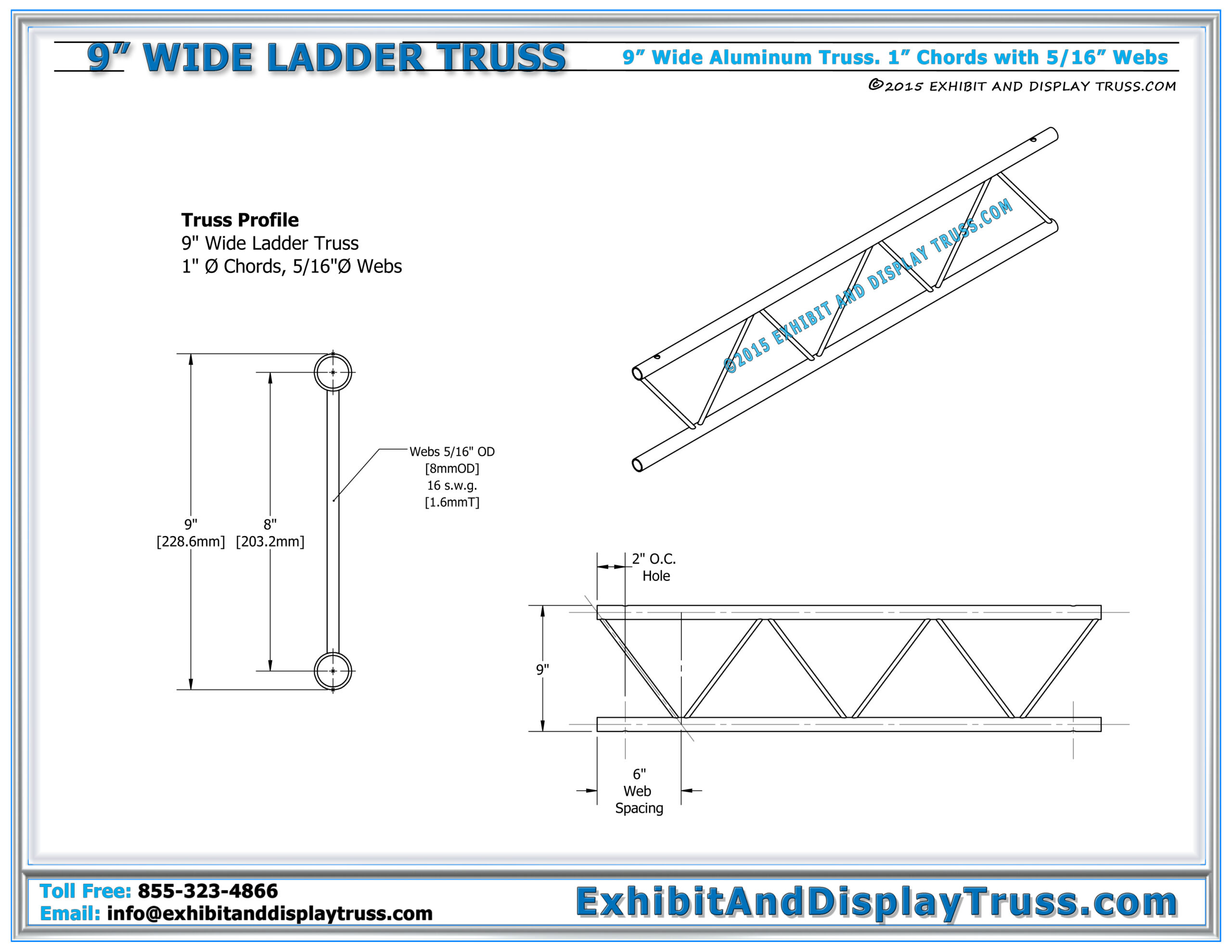

9″ WIDE 2-CHORD / LADDER TRUSS

Specifications

• Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
• Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
• Material: 6005 – T6 Aluminum
•

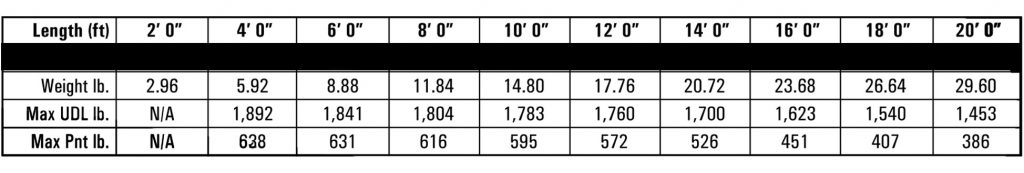

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

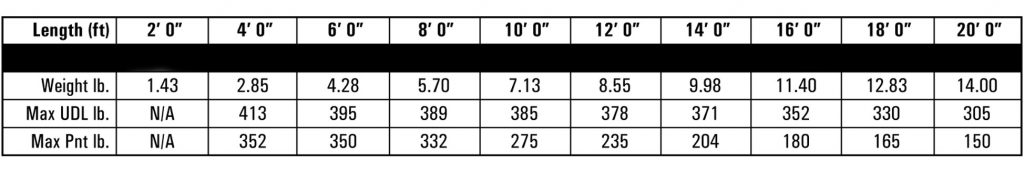

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

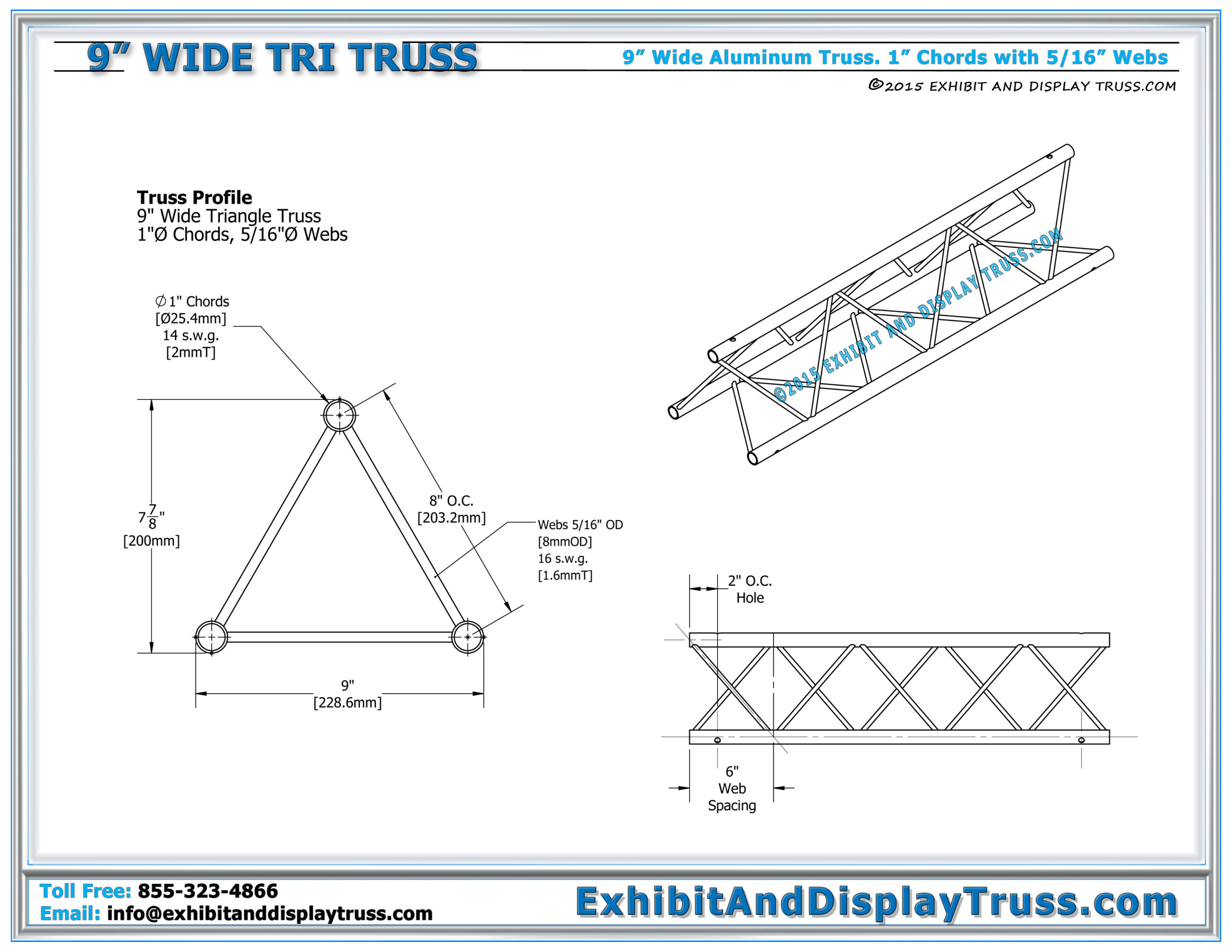

9″ WIDE 3-CHORD / TRIANGLE TRUSS

Specifications

• Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
• Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
• Material: 6005 – T6 Aluminum

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

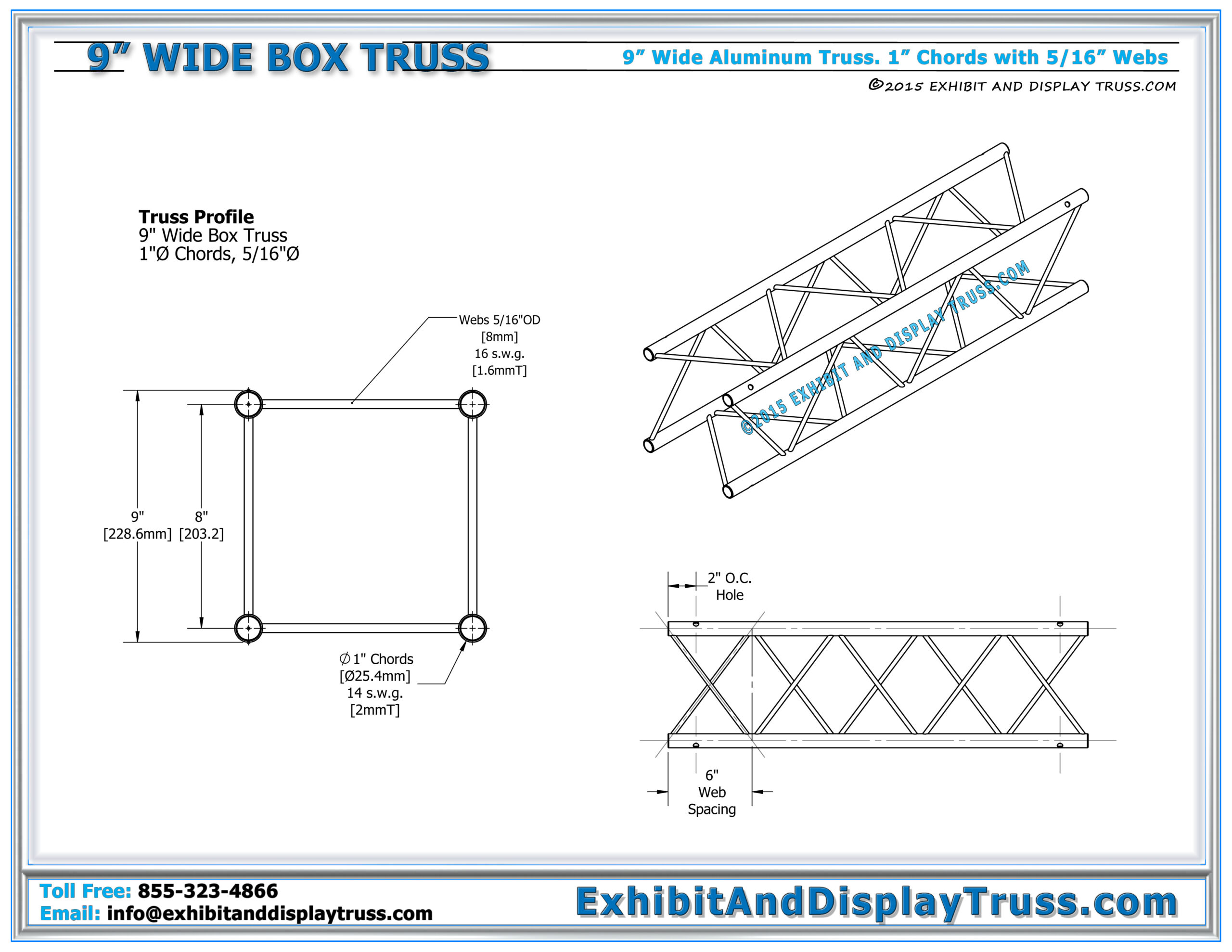

9″ WIDE 4-CHORD / (SQUARE) BOX TRUSS

Specifications

• Main Tube: 1”Ø (25.4mmØ) x 14 s.w.g. wall (2mmT)
• Lacing Spars: 5/16”Ø (8mmØ) x 16 s.w.g. wall (1.6mmT)
• Material: 6005 – T6 Aluminum

 *The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

CONNECTION SYSTEM

1″ tube connection insert for aluminum truss.  This expansion style 1″ tube connection insert system fits all 1″ aluminum tube (6 inch wide and 9 Inch wide aluminum truss parts use 1″ tube, or chord, diameter). All insert spigots are made with 6061-T6 (SS) Aluminum. The 1″ tube connection insert system is very easy to assemble with 4mm Allen key and provides strength and durability. The 1″ tube insert system provides a completely unobtrusive connection method, with no protruding bolts.  This results in a clean and aesthetically pleasing exhibit display booth. Trade Show Truss booths using 9″ Wide aluminum truss are perfect for smaller booth sizes and for a portable retail displays. Please note that all of our parts come standard with all connection inserts and hardware.
