18″ WIDE ALUMINUM TRUSS

18″ Wide Aluminum Truss offers a great solution to building larger display booths that require a high degree of structural integrity. 18″ wide aluminum truss is build with “AV” joints at the end of each truss length. This joint provides more strength for larger applications, such as larger truss systems and larger finish lines (motoracing). Exhibit and Display Truss offers a wide variety of truss parts and accessories. Exhibit and Display Truss stocks standard parts and exhibit booths and also has the ability to build custom parts and booths if your project requires unique configurations. If you cant find what you are looking for out of our standard systems or parts, do not hesitate to ask for a custom length or size. 2″ tube connection inserts (and hardware) come standard with each truss part, allowing for a quick and easy assembly.

Specifications:

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1”Ø (25.4mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

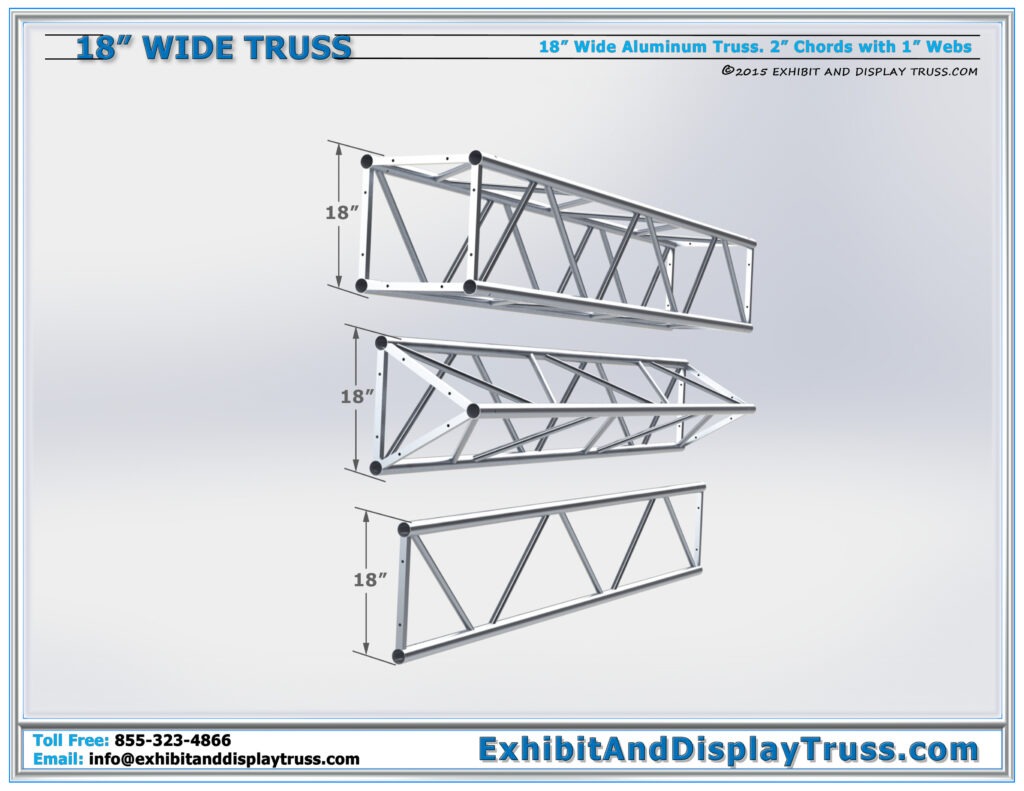

2 Chord / Ladder (Flat) Truss Ladder Profile

3 Chord / Triangle Truss

4 Chord / Box (Square) Truss Box Profile

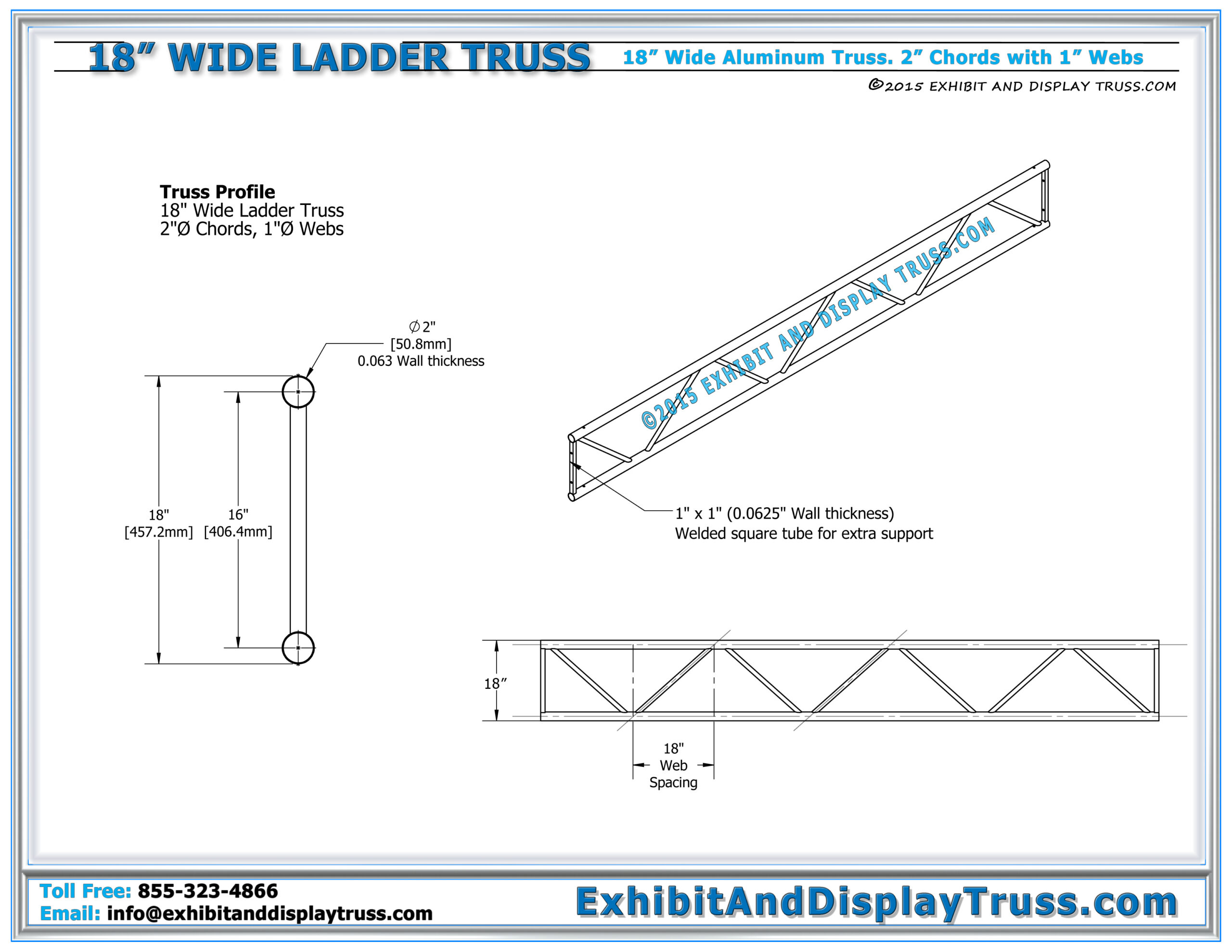

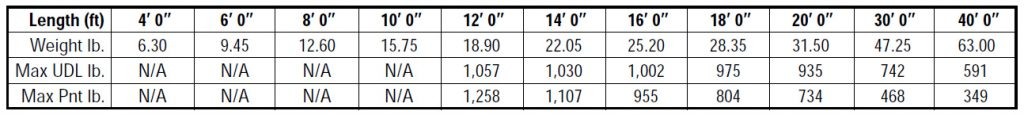

18″ WIDE 2-CHORD / LADDER TRUSS

CLICK HERE FOR PDF



Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1”Ø (25.4mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

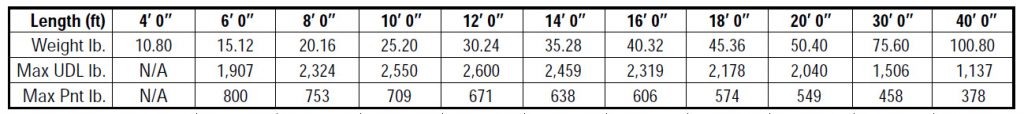

UDL = Uniformly Distributed Load. Pnt = Point Load.

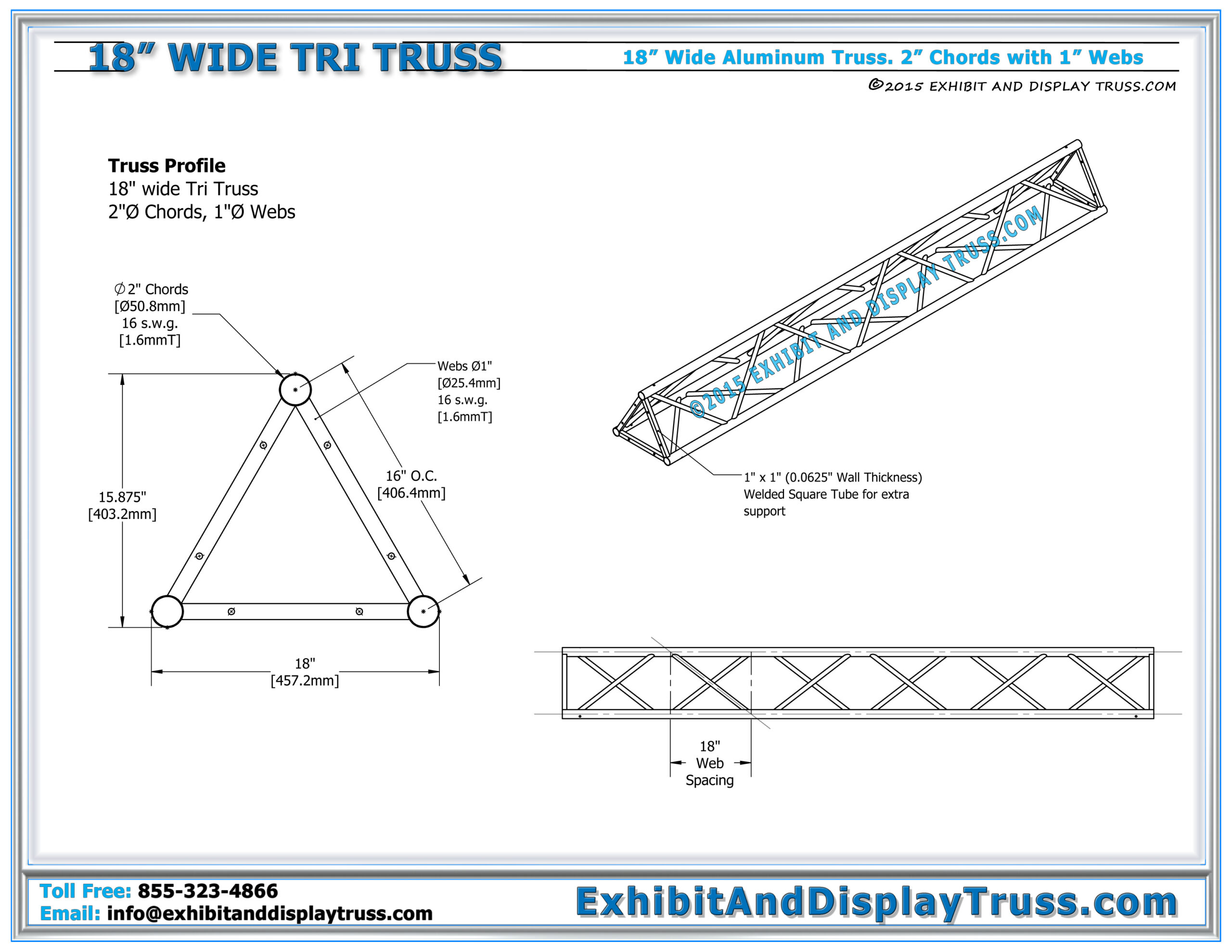

18″ WIDE 3-CHORD / TRIANGLE TRUSS



Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1”Ø (25.4mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

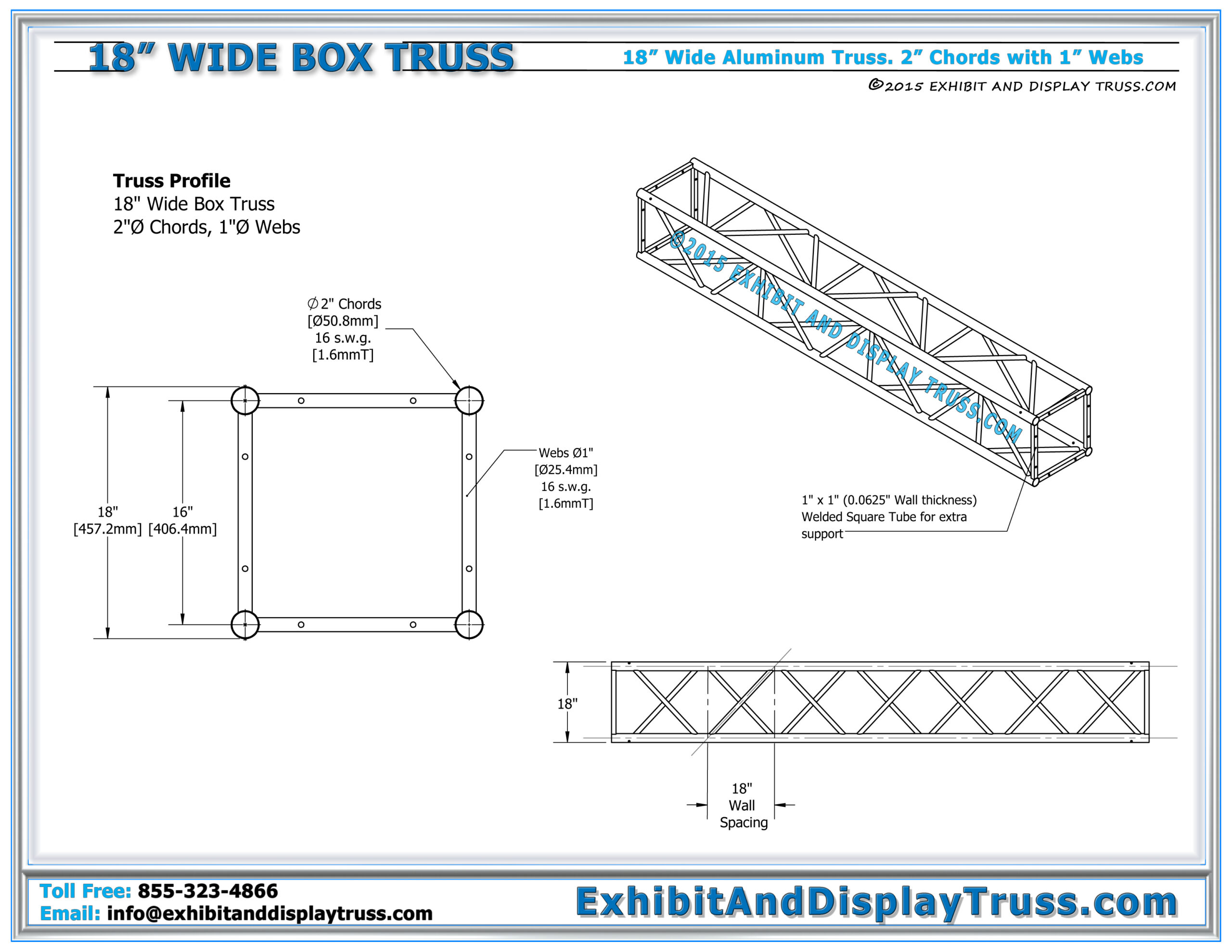

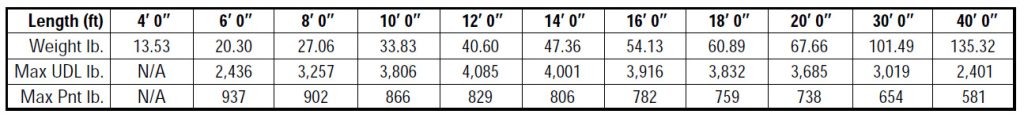

18″ WIDE 4-CHORD / (SQUARE) BOX TRUSS



Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1”Ø (25.4mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

 *The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

CONNECTION SYSTEM

18″ Wide Aluminum Truss uses a 2″ connection system. The 2″ Connection Insert System uses a simple connection pin with a M10 Nylock nut and bolt, and tightened with 17mm wrenches. This insert provides the truss with a durable and reliable connection. The resulting truss structure is a clean and professional looking display. This same connection system is used for our 10″ wide aluminum truss, 12″ wide aluminum truss and 24″ aluminum truss. Don’t hesitate to contact us if you have any questions. We can also custom create anything you like if you cannot find what you are looking for.

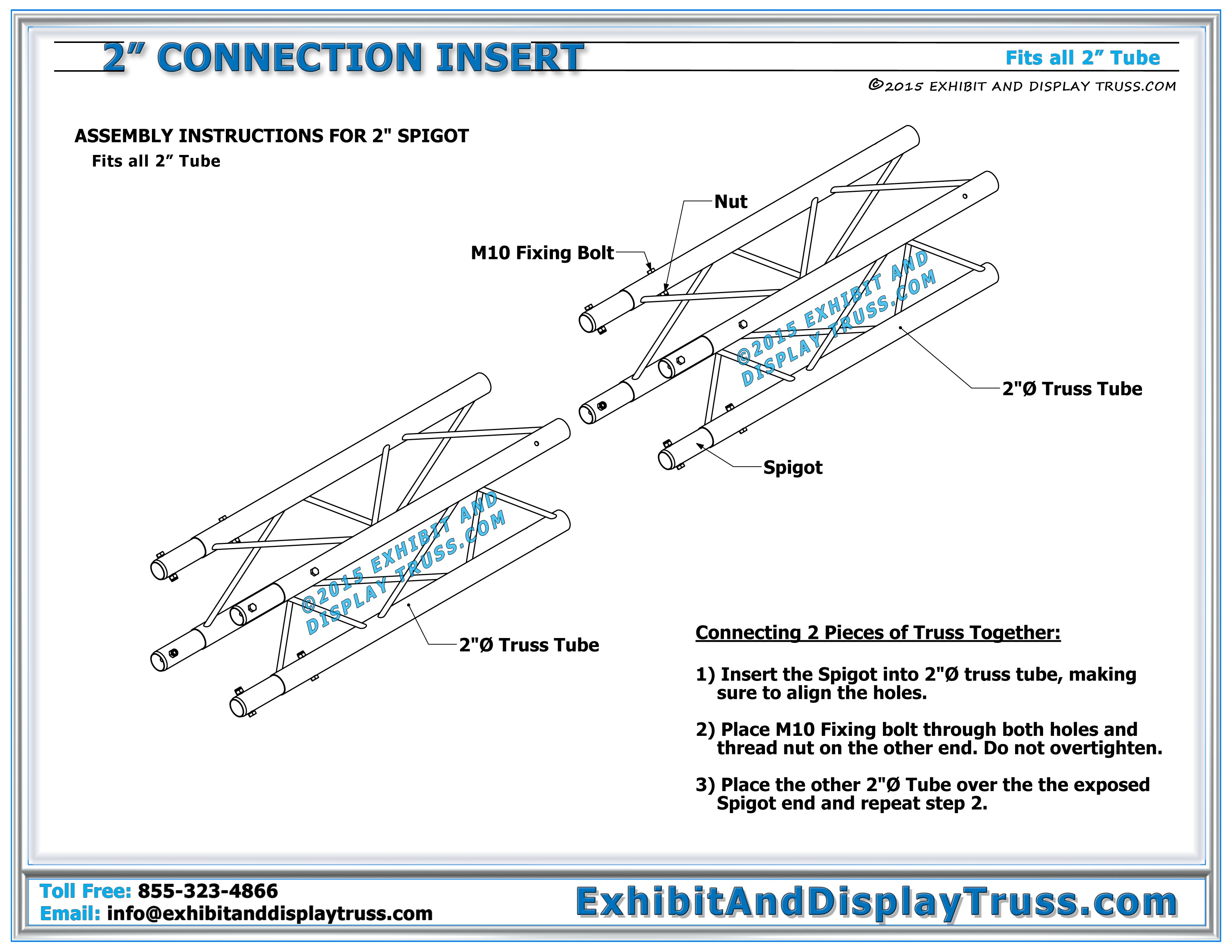

Assembly Instructions

2" Connection Insert assembly instructions

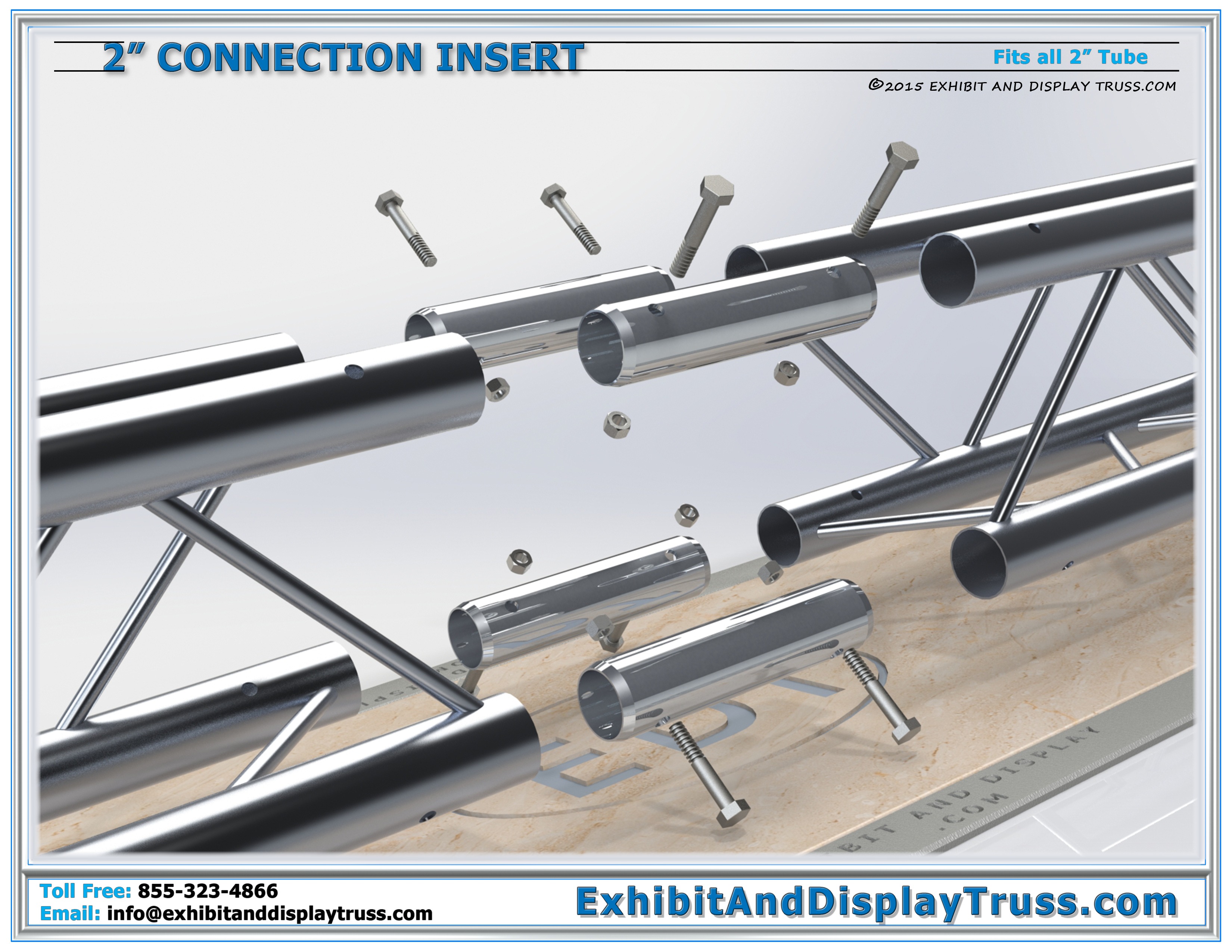

Exploded View

Portable Aluminum Truss Part

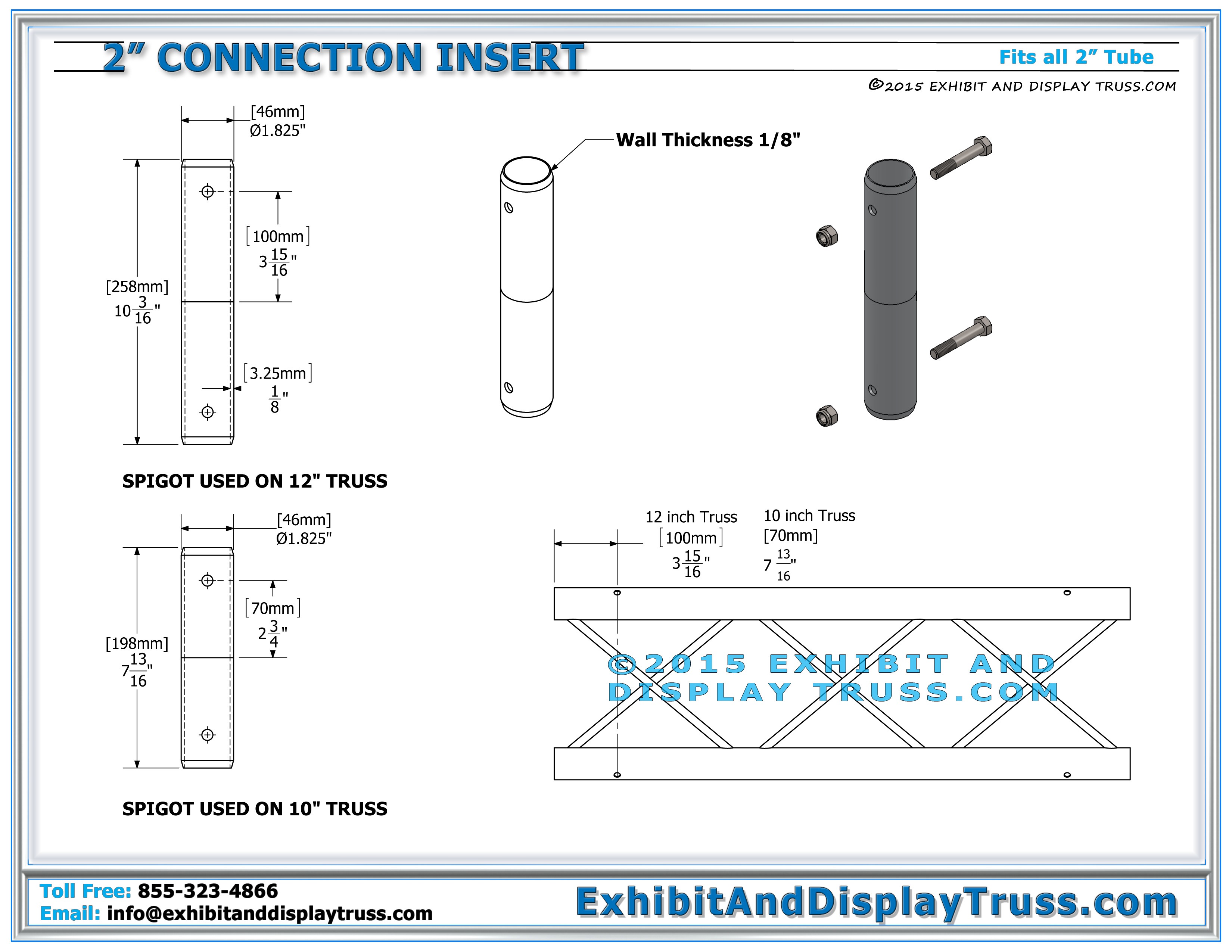

Dimensions

Dimension diagram

2″ CONNECTION SYSTEM OVERVIEW
