12″ WIDE ALUMINUM TRUSS

12″ Wide Aluminum offers an ideal solutions to booths that exceed 10 feet, although this truss profile and size can be used for smaller aluminum truss booth as well. 12″ wide aluminum truss is a well proportioned truss size and very reliable. 12″ wide aluminum truss is extremely durable and lightweight. All truss kits made with 2″ chords are fast and easy to assemble at any site or venue, making it a perfect solution for trade shows and fairs. It is perfect for display booths that require longer spans and for finish and start line truss kits. A 12″ wide truss profile offers a better solution for booths and structures that require more structural integrity. Curved parts can also be made in this profile size and integrated into any display booth. 12″ wide aluminum truss has a 2″ diameter tube /chord size which uses a simple 2″ Tube Connection Insert system consisting of a Nylock nut and bolt connection system (same connection systems used for our 10″ wide aluminum truss). Quick Clips can also be used instead of the nuts and bolts, allowing for a quick and easy set up with no tools.  12” wide or profile truss is made with 2” chords and 1/2” webbing. Custom lengths and junctions can be fabricated quickly to create and design element you could image. Our standard library of parts makes for a massive range of designs but we’re never afraid to take on the custom jobs.

Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

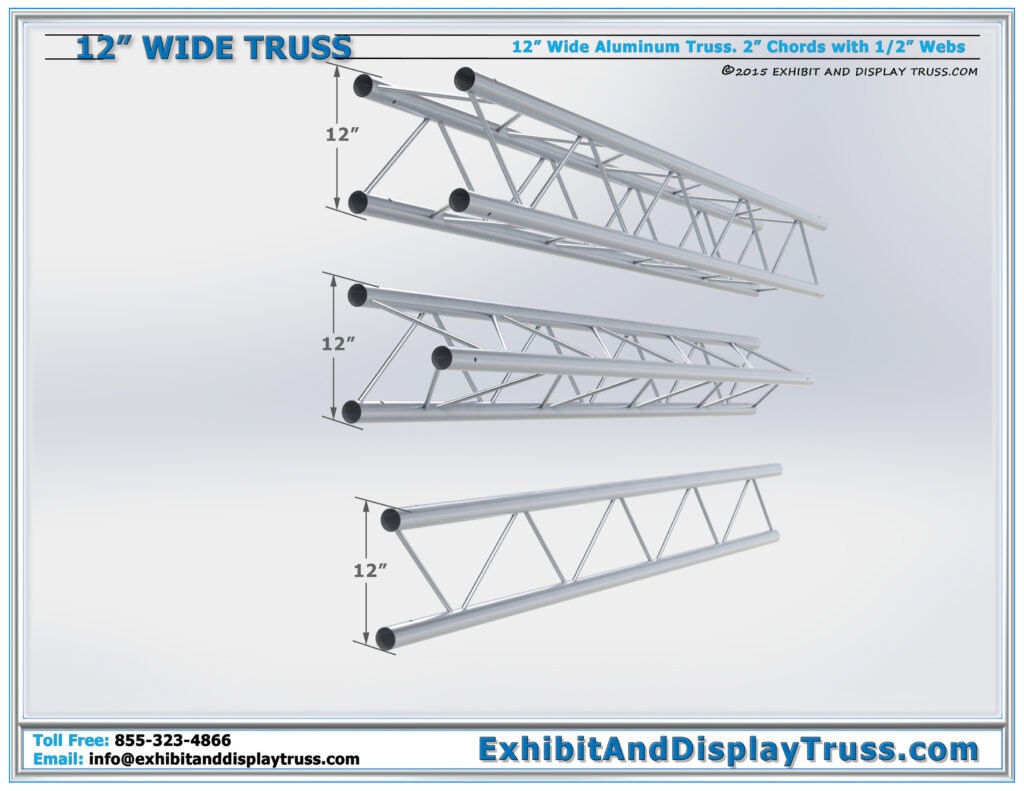

2 Chord / Ladder (Flat) Truss Ladder Profile

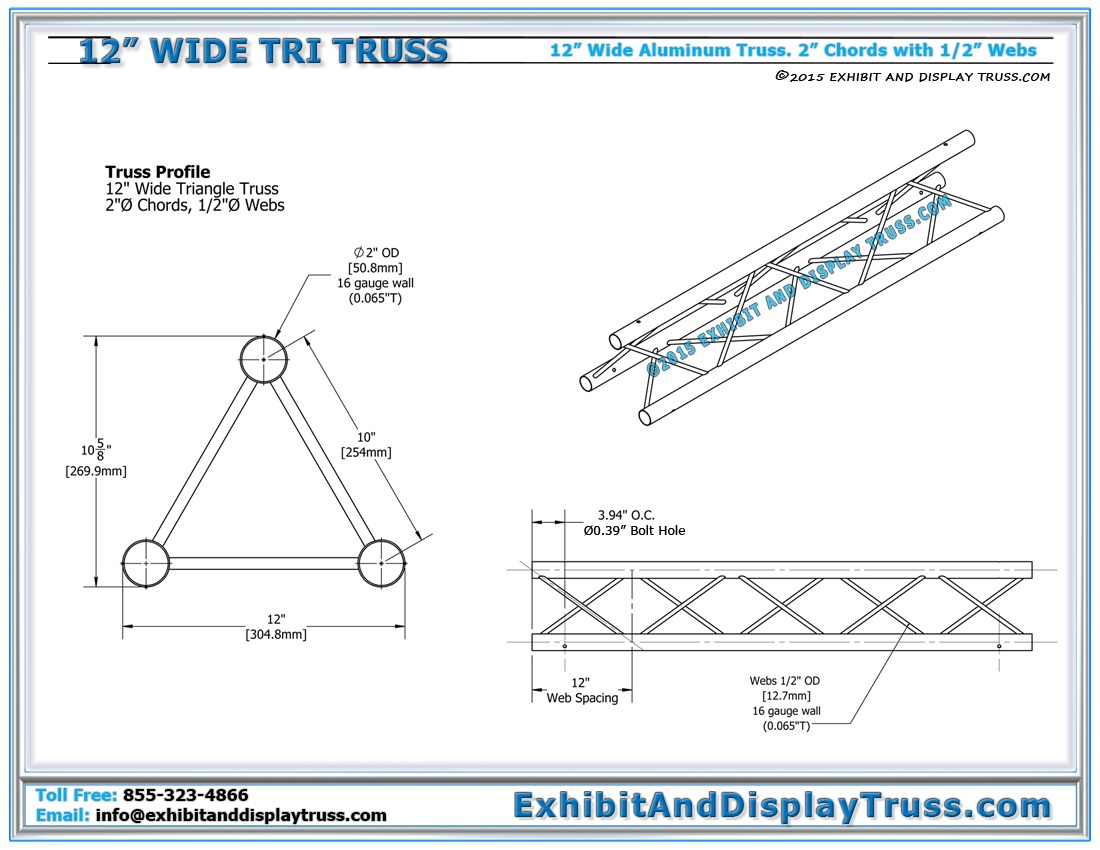

3 Chord / Triangle Truss

4 Chord / Box (Square) Truss Box Profile

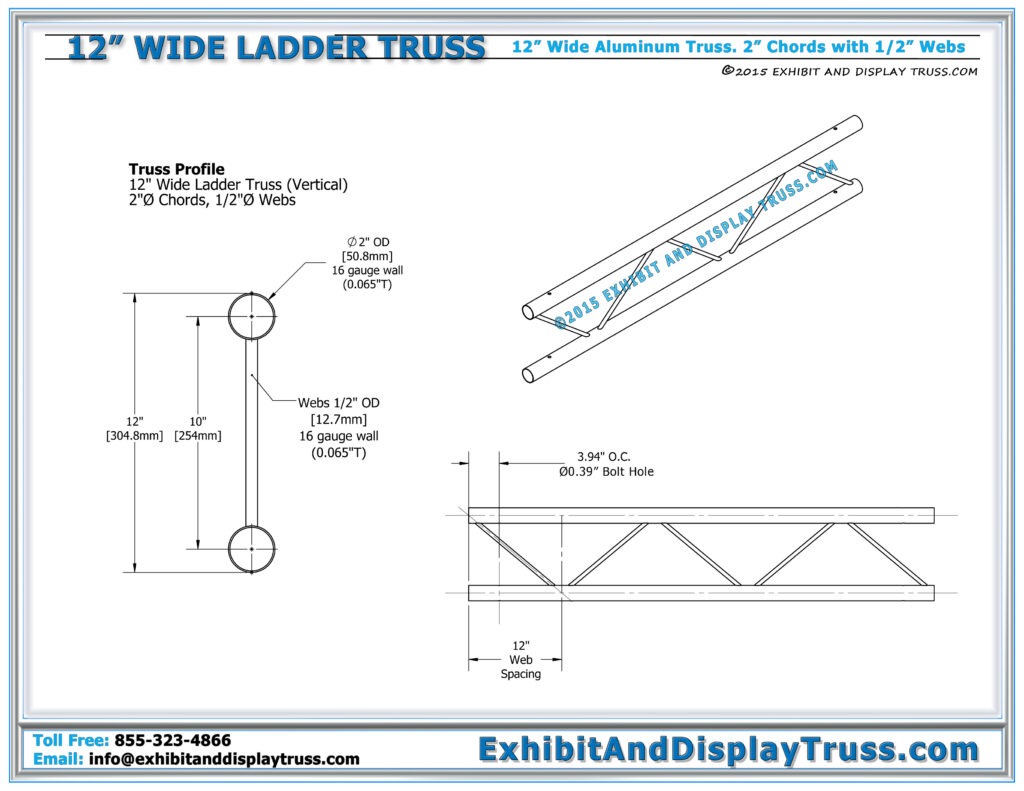

12″ WIDE 2-CHORD / LADDER TRUSS



Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

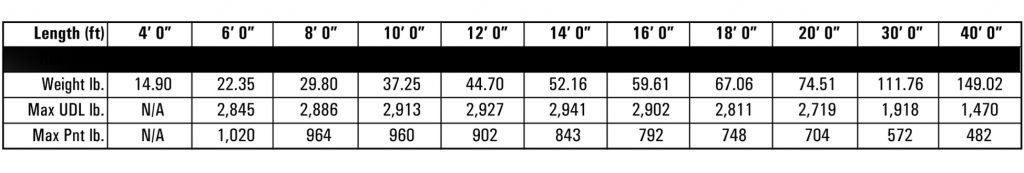

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

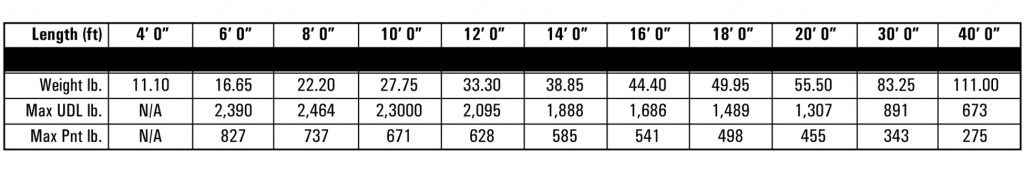

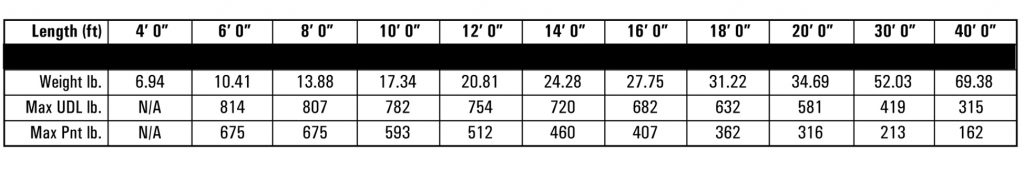

UDL = Uniformly Distributed Load. Pnt = Point Load.





Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

*The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

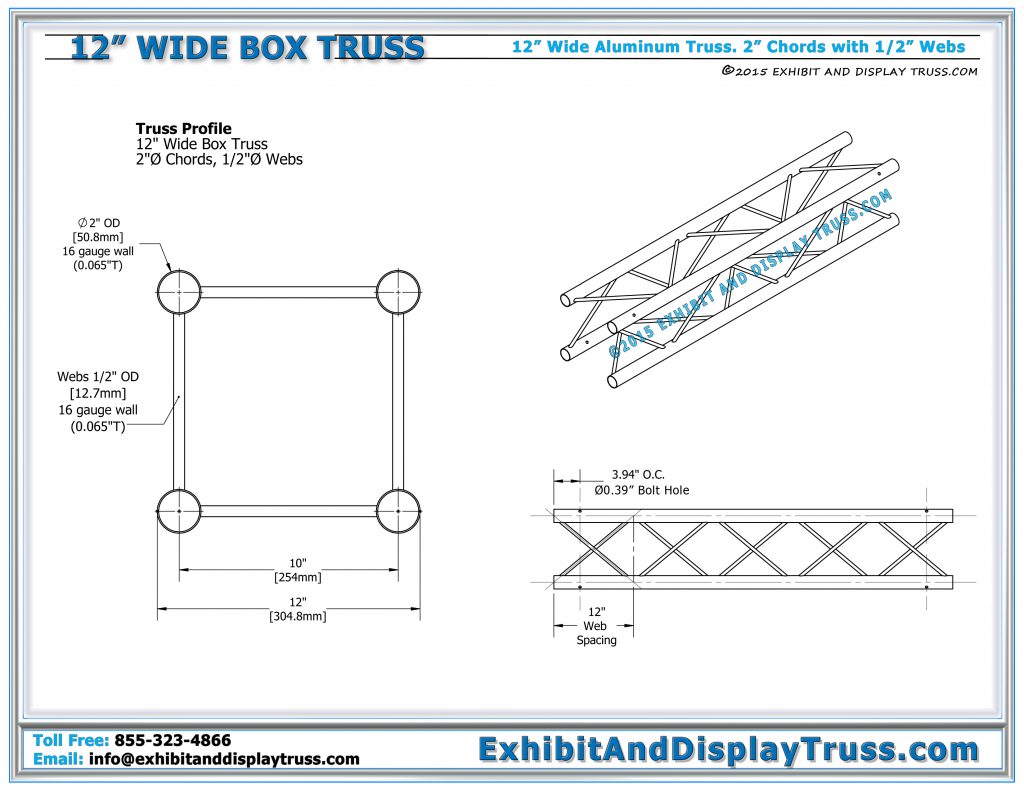

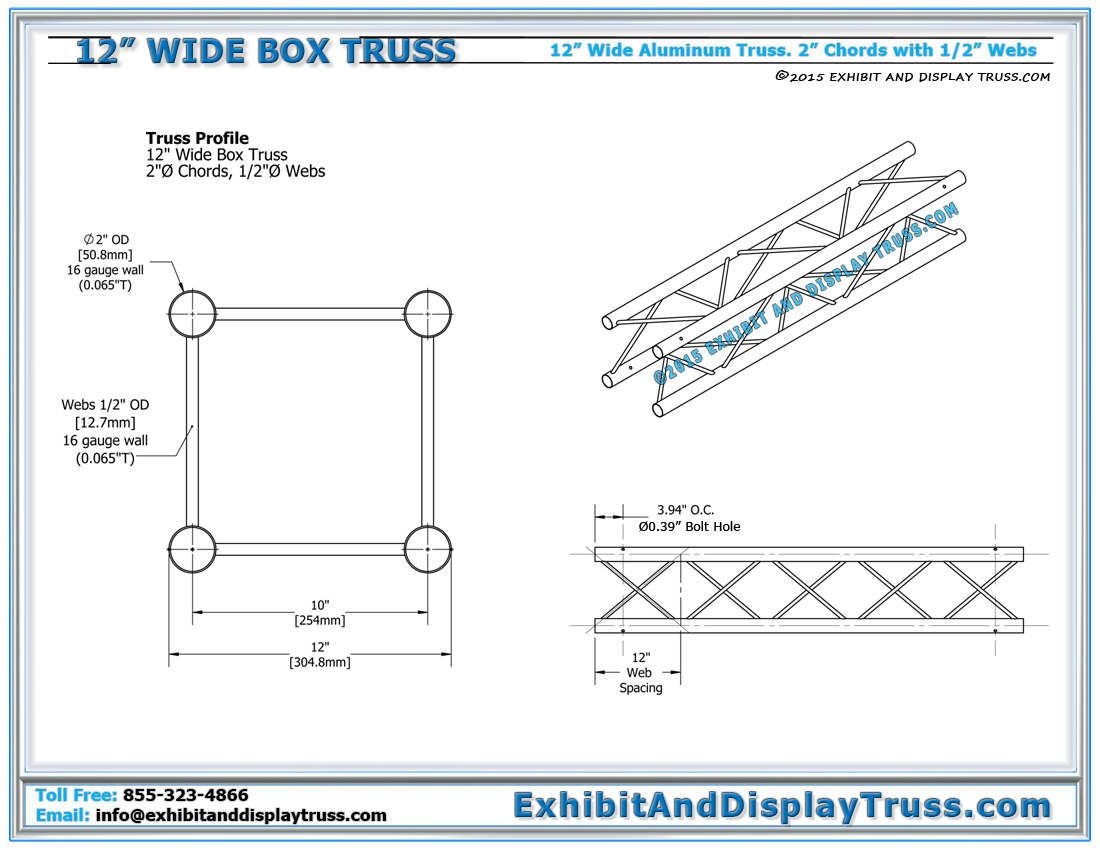

12″ WIDE 4-CHORD / (SQUARE) BOX TRUSS



Specifications

  • Main Tube: 2”Ø (50.8mmØ) x 16 s.w.g. wall (1.6mm T)
  • Lacing Spars: 1/2”Ø (12.7mmØ) x 16 s.w.g. wall (1.6mm T)
  • Material: 6005 – T6 Aluminum

 *The loading figures for Box are based on a load being applied evenly to both lower tubes. Individual loading of a single tube can reduce overall load bearing characteristics.

Non-standard lengths can be produced. Any special length less than 1 foot is priced at 1 foot. All lengths include spigots.

UDL = Uniformly Distributed Load. Pnt = Point Load.

CONNECTION SYSTEM

12″ Wide Aluminum Truss uses a 2″ connection system. The 2″ Connection Insert System uses a simple connection pin with a M10 Nylock nut and bolt, and tightened with 17mm wrenches. This insert provides the truss with a durable and reliable connection. The resulting truss structure is a clean and professional looking display. This same connection system is used for our 10″ wide aluminum truss, 18″ wide aluminum truss and 24″ aluminum truss. Don’t hesitate to contact us if you have any questions. We can also custom create anything you like if you cannot find what you are looking for.
