1" and 2" Chord Truss Specifications


2" Chord Aluminum Truss / 1" Chord Aluminum Truss / 2 Chord-Ladder Truss / 3 Chord-Triangle Truss / 4 Chord-Box Truss / Curved Truss


2" Chord Aluminum Truss

Main Tube / Chord : 2"OD. (50.8mm) x 16 gauge wall (0.065" T)
Webs : 1/2" (12.7mm) x 16 gauge wall (0.065" T)
Material : 6351 - T6 Aluminum

This is our most popular choice for trade show Exhibits and Displays due to its hearty profile and strength. The 2" chords and 1/2" webbing make this truss standout from the rest and provide a stable, high tech structure to hang or support just about anything. Despite the bold look of the trussing it's physical weight is very low making it easy to set up and transport. The use of male inserts to connect this truss assure a quick and easy assembly at any venue. This 2" truss is available in 2 profile sizes, 10" and 12". Both are attractive, strong and proportioned to suit most exhibit and display designs. A huge variety of standard components and parts are available so almost any shape or structure can be fabricated with ease. Custom sizes and lengths can be made to fit those situations where dimensions are critical. Curved pieces can be fabricated and integrated into any design or as stand alone components. This truss can be used for any size display or exhibit and will provide years of reliable, attractive performance. Mix and match this truss with our 1" outer chord truss to present a visual display that will dazzle all your potential customers and clients. Use truss to accent or fabricate furniture and props, literature displays and lecterns. The possibilities are endless. Let one our our friendly design team walk you through your next project or simply browse the many structures on our site. We take the time to add personal attention to details and ensure you are happy with your choice. We work very hard to provide you with an exhibit or display that is going to serve you best at a price that will make you smile. Your satisfaction is always our main priority.

1" Chord Aluminum Truss

Main Tube / Chord : 1 "OD. (25.4mm) x 14 gauge wall (0.079" T)
Webs: 5/16" (8mm) x 14 gauge wall (0.079" T)
Material : 6351 - T6 Aluminum

Our attractive 1" truss is a smaller, lightweight and decorative modular structural system. It is widely used in exhibition, interior design, trade show and retail applications such as in-store displays , merchandising units and for suspending lighting, graphics and video monitors. A fantastic choice when the hearty look and strength of larger truss is not needed. Profile sizes of 6" and 9" make for endless design possibilities much like our 2" truss many stock corners and accessories make design and assembly a snap. The split spigot connecting system provides a totally unobtrusive fixing method that adds aesthetic appeal and quick easy setup with only the use of a single 4mm Allen key. No other tools or necessary. As always your total satisfaction with our product is guaranteed and we would be happy to assist in the design of your next project.

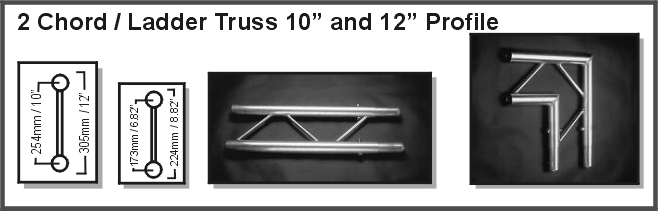

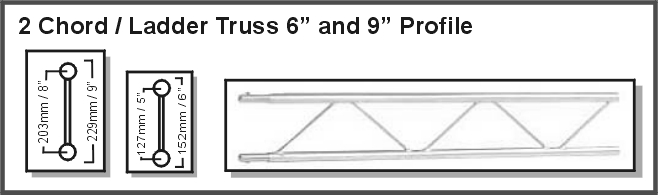

2 CHORD / LADDER TRUSS

2 Chord / Ladder truss is great for small exhibits or displays where the strength and stablility of the 3 and 4 chord truss is not needed. 2 chord truss can be used in a horizontal or vertical plane to provide strength but only in one direction. Makes for excellent media and sign mounting as well as archways, props and divider walls.

trade show truss exhibition display exhibits tradeshow

10" and 12" Truss Load Tables

LENGTH - 10" TRUSS (Measured in Metric Lengths)
1m
2m
3m
4m
5m
6m
7m
8m
TRUSS WEIGHT Lb.
4.80
8.10
11.40
14.70
17.60
20.90
24.20
27.50
UD. LOAD Lb.
835
815
782
683
560
476
418
367
PNT. LOAD Lb.
733
614
459
351
298
249
205
184
LENGTH - 12" TRUSS
6'
8'
12'
16'
18'
20'
30'
40'
TRUSS WEIGHT Lb.
10.41
13.88
20.81
27.75
31.22
34.69
52.03
69.38
UD. LOAD Lb.
814
807
754
682
635
581
419
315
PNT. LOAD Lb.
675
675
512
407
362
316
213
162

6" and 9 " Truss Load Tables

trade show truss aluminum truss trussing

LENGTH - 6 " TRUSS
6'
8'
10'
12'
14'
16'
18'
20'
TRUSS WEIGHT Lb.
3.53
4.70
5.88
7.05
8.23
9.40
10.58
11.75
UD. LOAD Lb.
320
308
291
275
252
222
198
181
PNT. LOAD Lb.
255
220
194
170
133
128
110
99
LENGTH - 9 " TRUSS
6'
8'
10'
12'
14'
16'
18'
20'
TRUSS WEIGHT Lb.
4.28
5.70
7.13
8.55
9.98
11.40
12.83
14.00
UD. LOAD Lb.
365
389
385
378
371
352
330
305
PNT. LOAD Lb.
350
332
275
235
204
180
165
150

PNT. Load = Point Load / UD. Load = Uniformly Distributed Load. All ratings are to be used as a general guidline only.

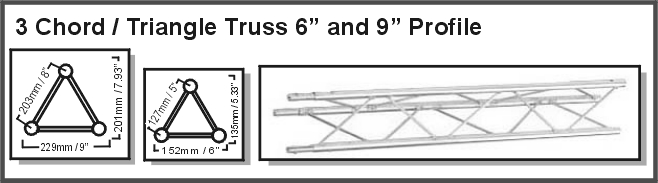

3 CHORD / TRIANGLE TRUSS

3 Chord truss is the most cost effective truss when strength, size and long spans are needed. The extra strength gained by the 3 chord truss makes for horizontal and vertical stability that is critical on longer spans of truss. Great for all situations structural or cosmetic. The 360 degree visibility of 3 chord / tri truss adds dimension and strength to any exhibit or display. This truss can be used in 4 different orientations. Apex up, apex down, apex in and apex out. All of these orientations create an exciting visual and allow for some amazing designs. We highly recommend going to 3 chord truss if the budget allows for it as it will serve you well for many years and the expansion possibilities are endless due to the added strength having less limitations as far as long spans are concerned. A great cost effective choice for your next project with room to expand on other projects in the future. Simply add more truss to create countless variations of truss structures and display components. It's a giant Meccano set !

tras\de show truss trussing trusses exhibit truss display truss

10" and 12" Truss Load Tables

LENGTH - 10" TRUSS (Measured in Metric Lengths)
1m
2m
3m
4m
5m
6m
7m
8m
TRUSS WEIGHT Lb.
7.90
13.60
20.20
26.00
32.60
38.50
44.00
48.40
UD. LOAD Lb.
2741
2633
2016
1514
1245
1050
887
792
PNT. LOAD Lb.
1209
892
617
587
487
440
382
341
LENGTH - 12" TRUSS
6'
8'
12'
16'
18'
20'
30'
40'
TRUSS WEIGHT Lb.
16.65
22.20
33.30
44.40
49.95
55.50
83.25
111
UD. LOAD Lb.
2390
2464
2095
1686
1486
1307
891
673
PNT. LOAD Lb.
827
737
628
541
498
455
343
275

PNT. Load = Point Load / UD. Load = Uniformly Distributed Load. All ratings are to be used as a general guidline only.

trade shows trade show event truss

.6" and 9 " Truss Load Tables

LENGTH - 6 " TRUSS
6'
8'
10'
12'
14'
16'
18'
20'
TRUSS WEIGHT Lb.
5.64
7.52
9.40
11.28
13.16
15.04
16.92
18.80
UD. LOAD Lb.
682
660
638
616
569
493
440
400
PNT. LOAD Lb.
370
308
273
242
222
204
187
171
LENGTH - 9 " TRUSS
6'
8'
10'
12'
14'
16'
18'
20'
TRUSS WEIGHT Lb.
6.84
9.12
11.40
13.68
15.96
15.04
20.52
22.40
UD. LOAD Lb.
679
660
649
638
630
623
616
601
PNT. LOAD Lb.
453
396
356
319
298
281
264
249

PNT. Load = Point Load / UD. Load = Uniformly Distributed Load. All ratings are to be used as a general guidline only.

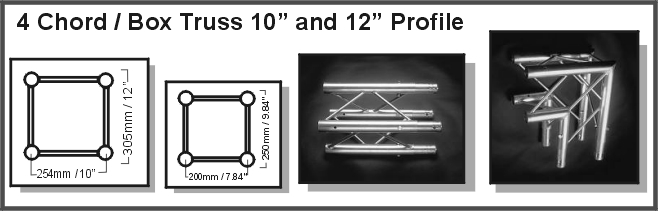

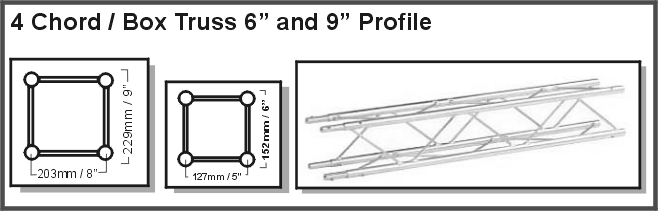

4 CHORD / BOX TRUSS

4 Chord truss is our premium line of truss. With plenty of strength and a full bold appearance it makes for a professional looking exhibit or display every time. Box truss has long been the standard in most areas of industry where stable, high tech structures are required. Virtually an endless range of applications from large displays and exhibits, theme park structures, club installations, staging and performance areas, churches and retail installations. The use of box truss allows for years of unlimited expansion and provides a long versatile life of attractive, impressive looking displays.

truss exhibit dispaly truss trade show trusses

10" and 12" Truss Load Tables

LENGTH - 10" TRUSS (Measured in Metric Lengths)
1m
2m
3m
4m
5m
6m
7m
8m
TRUSS WEIGHT Lb.
10.60
18.32
26.04
33.75
41.47
49.19
56.90
64.62
UD. LOAD Lb.
3174
3239
3194
2992
2624
2297
1925
1584
PNT. LOAD Lb.
1529
1236
1049
922
794
727
671
612
LENGTH - 12" TRUSS
6'
8'
12'
16'
18'
20'
30'
40'
TRUSS WEIGHT Lb.
10.41
13.88
20.81
27.75
31.22
34.69
52.03
69.38
UD. LOAD Lb.
8.14
807
754
682
632
581
419
315
PNT. LOAD Lb.
675
675
593
407
362
316
213
162

PNT. Load = Point Load / UD. Load = Uniformly Distributed Load. All ratings are to be used as a general guidline only.

trade show truss trusses exhibit displays

.6" and 9 " Truss Load Tables

LENGTH - 6 " TRUSS
6'
8'
10'
12'
14'
16'
18'
20'
TRUSS WEIGHT Lb.
7.44
9.92
12.40
14.88
17.36
19.84
22.32
24.80
UD. LOAD Lb.
1513
1474
1422
1364
1258
1073
968
908
PNT. LOAD Lb.
517
462
429
396
365
335
308
293
LENGTH - 9 " TRUSS
6'
8'
10'
12'
14'
16'
18'
20'
TRUSS WEIGHT Lb.
8.88
11.84
14.80
17.76
20.72
23.68
26.64
29.60
UD. LOAD Lb.
1841
1804
1783
1760
1700
1623
1540
1453
PNT. LOAD Lb.
631
616
595
572
526
451
407
386

PNT. Load = Point Load / UD. Load = Uniformly Distributed Load. All ratings are to be used as a general guidline only.


Custom and Curved Truss

Exhibit and Display truss products are used extensively in trade show, exhibition, retail and entertainment applications. The comprehensive range of standard components, junctions and accessories allows designers the freehand creativity to produce innovative design concepts. Standard configurations can be inter grated with our custom components to provide unique solutions to complex design parameters. In addition to the standard range of products featured, we can produce virtually any type of special components to suit your specific requirements. Single tube fabrications, curved sections or plate constructions are just a few of our specialties. These may be used to complement existing components or as individual elements. Our rapid response production facility ensures a prompt delivery on even special configurations. Simply let us know what you need and our staff will guide you through the rest of the design process. We are always happy to assist.
